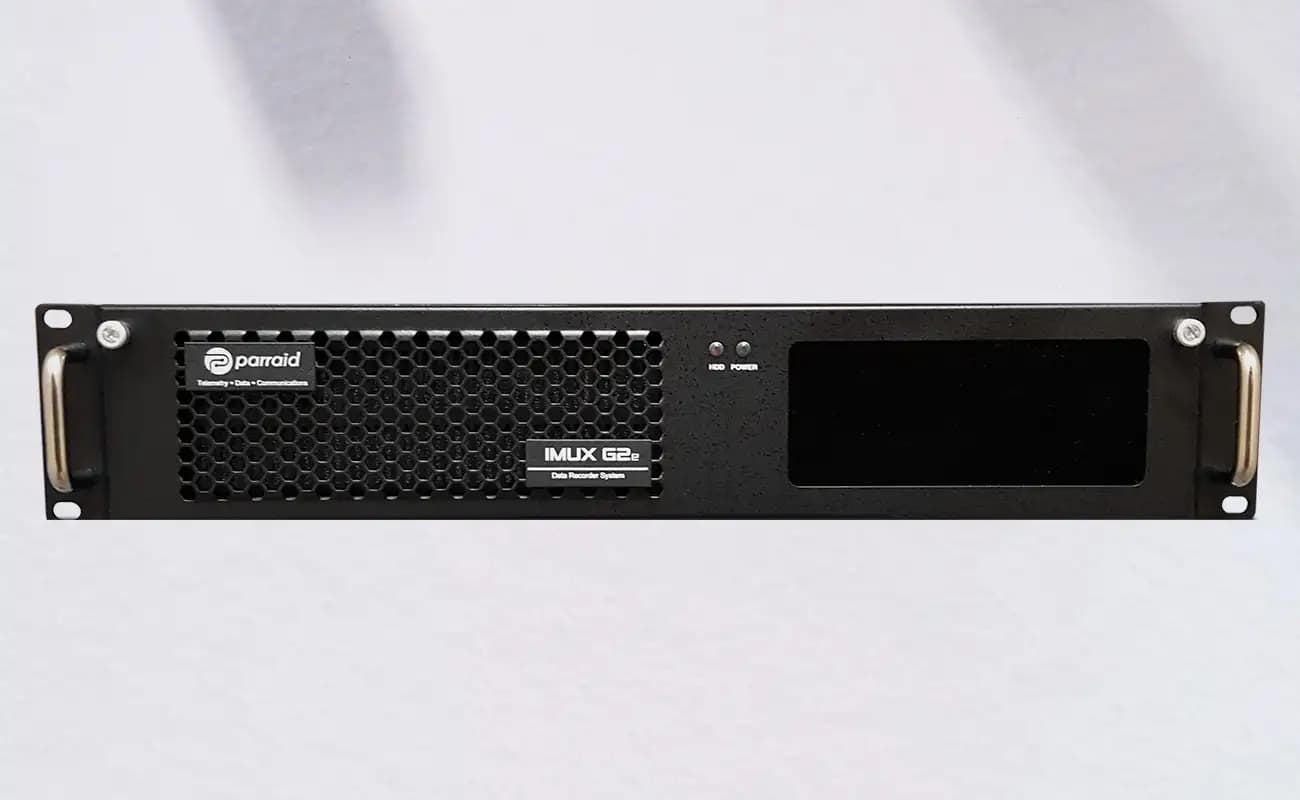

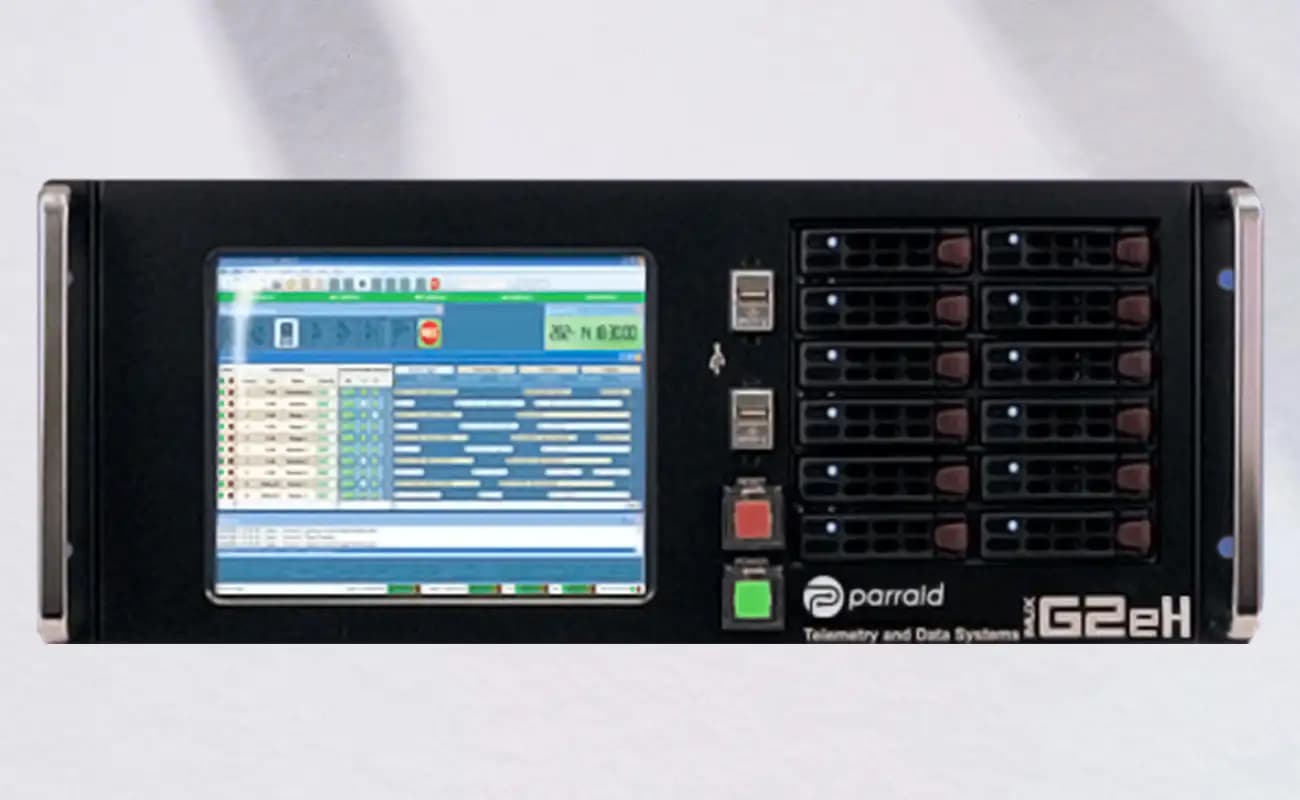

The IMUX G2e and the IMUX G2e Hybrid (G2eH) have many unique features such as supporting all industry-standard telemetry signal types, the ability to record two Chapter 10 files simultaneously – local and/or remote, simultaneous playback, and on-the-fly channel adjustment. All units can be equipped with optional integrated RF receivers, bit synchronizers, best source selection, and real-time decom, processing, and display capabilities. The new IMUX G2e Hybrid is equipped with all the existing powerful features the IMUX G2e has to offer plus the capability to input TMoIP channels (218-20 or CH10 / 11 UDP) directly into the recorder. This gives the G2eH the capability to record all channels (TMoIP Inputs and PCM Signal Inputs) as IRIG 106 Chapter 11 PCM format.
The G2eH dynamically converts TMoIP 218-20 inputs to Chapter 10 packets while recording, which allows for the G2eH, G2e, or any other CH10 reproducer to output baseband (PCM Data & Clock) from the recorded Chapter 10 file. The recorded file will also work with any Chapter 10 / 11 compliant tool set for processing and analysis. This unmatched feature gives the user a single box solution to record and/or reproduce legacy and present-day channel types all together.The IMUX G2e/G2eH can be configured as a rackmount or portable unit. Rackmount configuration options include a compact 2U chassis for up to 4 channels and a robust 4U chassis for up to 32 channels. Touch screen and ruggedized systems for mobile applications and transport cases are available.
Powering secure, real-time data transmission across land, sea, and sky. Our solutions are engineered for precision, reliability, and mission success.
Powering secure, real-time data transmission across land, sea, and sky.
Parraid, is a highly regarded, U.S. based technology and engineering company specializing in product solutions for aerospace and ground tactical applications.

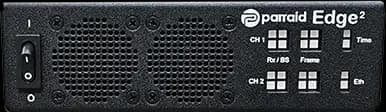

Edge² delivers network telemetry processing in a compact 2-channel unit. Supports RF-to-Ethernet (200 MHz-5.15 GHz), TMoIP/IRIG 106 Ch10/11 output. Portable or 1U rack-mountable design.

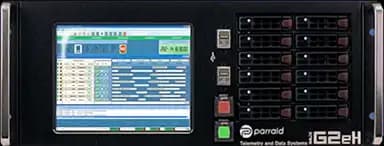

The IMUX G2e and the IMUX G2e Hybrid (G2eH) have many unique features such as supporting all industry-standard telemetry signal types, the ability to record two Chapter 10 files simultaneously.
OMEGA-NExT: 64-bit telemetry processing software with intuitive UI. Supports Chapter 10, TMoIP, and Ethernet inputs. Includes Clarity vector display for real-time and playback visualization.

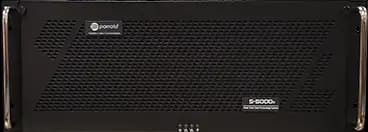

Series-5000: Real-time telemetry platform with 2-16 PCM inputs, optional Bit Syncs/RF receivers, IRIG time-stamping, and hot mic audio. Available in portable and rack-mount 2U/4U configurations.
Best Data Engine (BDE) compares multiple PCM input channels and creates a composite output with the best data. Real-time stream selection and error correction for mission-critical telemetry.

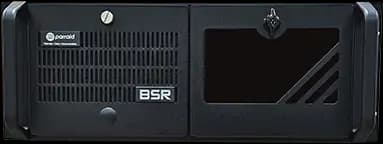

BSR-100 provides seamless Best Source post-processing, handling up to 32 recorded PCM streams from multiple locations. Includes 2-channel PSIMe output for optimal data reproduction.
The G3 Recorder-Processing system represents the next generation of telemetry data recording and processing platforms.
IMUX RE/CON is a telemetry ground network recorder for IP ranges. Auto-detects packets, converts formats to IRIG 106 Ch10 on-the-fly, and supports network playback redirection.
OMEGA Data Environment (ODE) post-processing enables rapid, secure mining of large data sets. Uses OODM technology for fast access, supports collaboration, and provides FIPS-compliant network encryption.
Rx2 multi-channel receiver: Tri-band (L/S/C) RF-to-Ethernet with AM, PCM/FM, BPSK, SOQPSK-TG demods. Up to 14 receivers per chassis, Chapter 10/11 output, and built-in diversity combining.
Explore Parraid’s knowledge hub for expert perspectives, product updates, and industry trends shaping the future of tactical communications systems and telemetry communication solutions. From field-tested innovations to advanced deployable communication products, our articles deliver actionable insights for engineers, defense professionals, and mission planners.
Parraid provides tactical communications solutions, telemetry data systems, and deployable communication products that support mission-critical operations around the globe. Below are some of the most common questions about our technology, services, and support.
Parraid works with aerospace, defense, government, and research organizations that depend on real-time data and secure communications. Our products are engineered to meet the unique operational needs of mission-critical and tactical environments.
Our telemetry data systems enable accurate data acquisition, recording, and playback across test ranges and aerospace applications. With IRIG-106 compliance and TMoIP support, we deliver precise insights for faster mission validation and system performance analysis.
Parraid’s tactical communications solutions are designed for interoperability and resilience. They integrate seamlessly with multi-band radios, SATCOM, and IP-based networks to maintain command, control, and situational awareness in any field condition.
Yes. Our deployable communication products are lightweight, ruggedized, and MIL-STD compliant, ideal for rapid setup and sustained connectivity in mobile or remote missions.
Absolutely. We work closely with our customers to design and configure systems tailored to their operational goals. Whether upgrading existing telemetry infrastructure or developing a fully deployable communication suite, we ensure seamless integration and lifecycle support.
All Parraid systems are designed, built, and supported in the United States. Our team of engineers and specialists provides continuous technical support to ensure mission reliability and customer success.
