Edge2 Telemetry Receiver/Decom

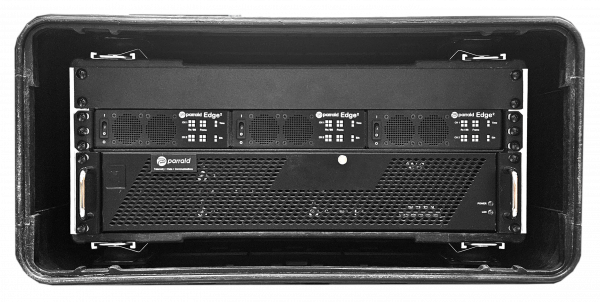

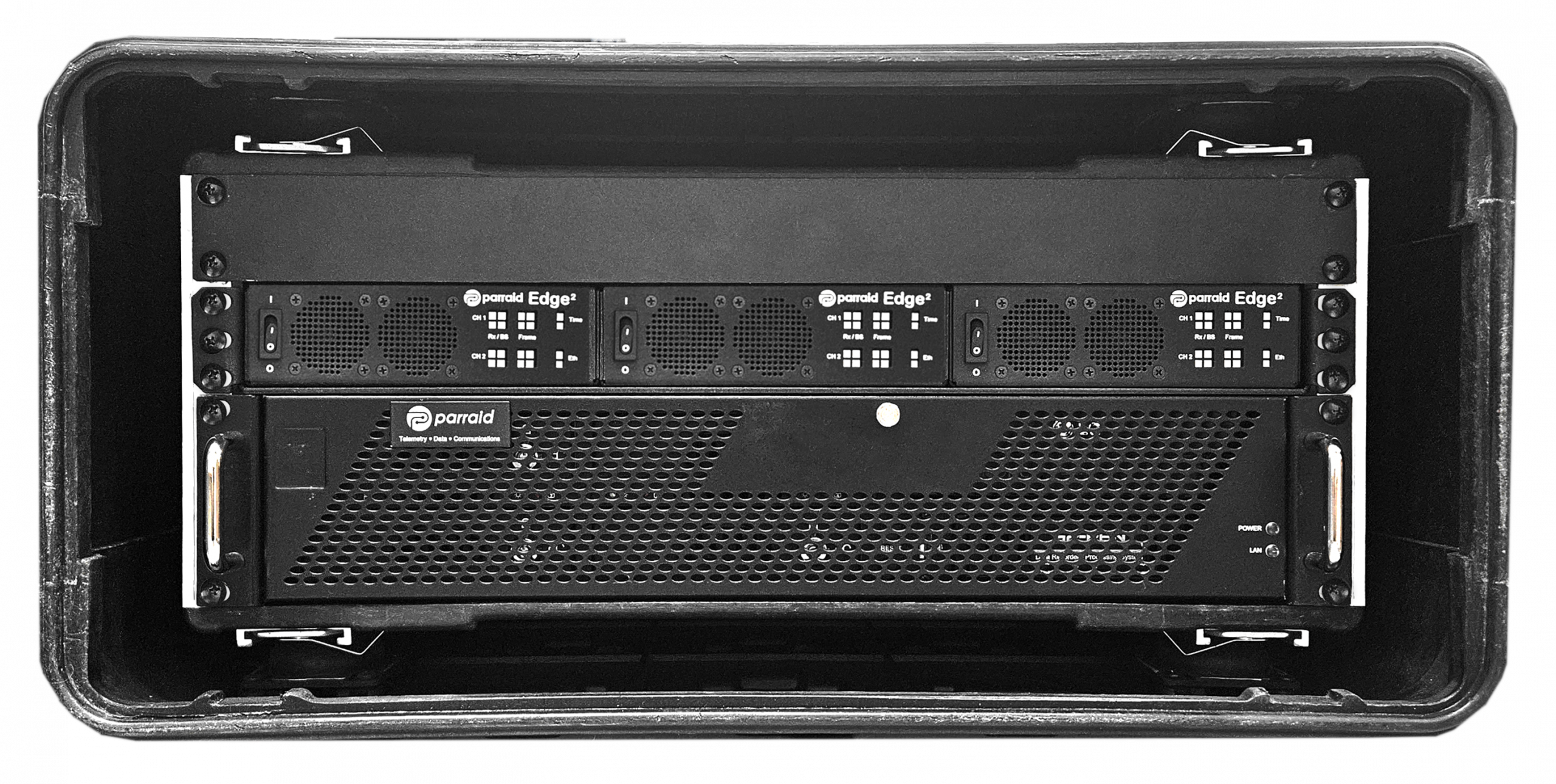

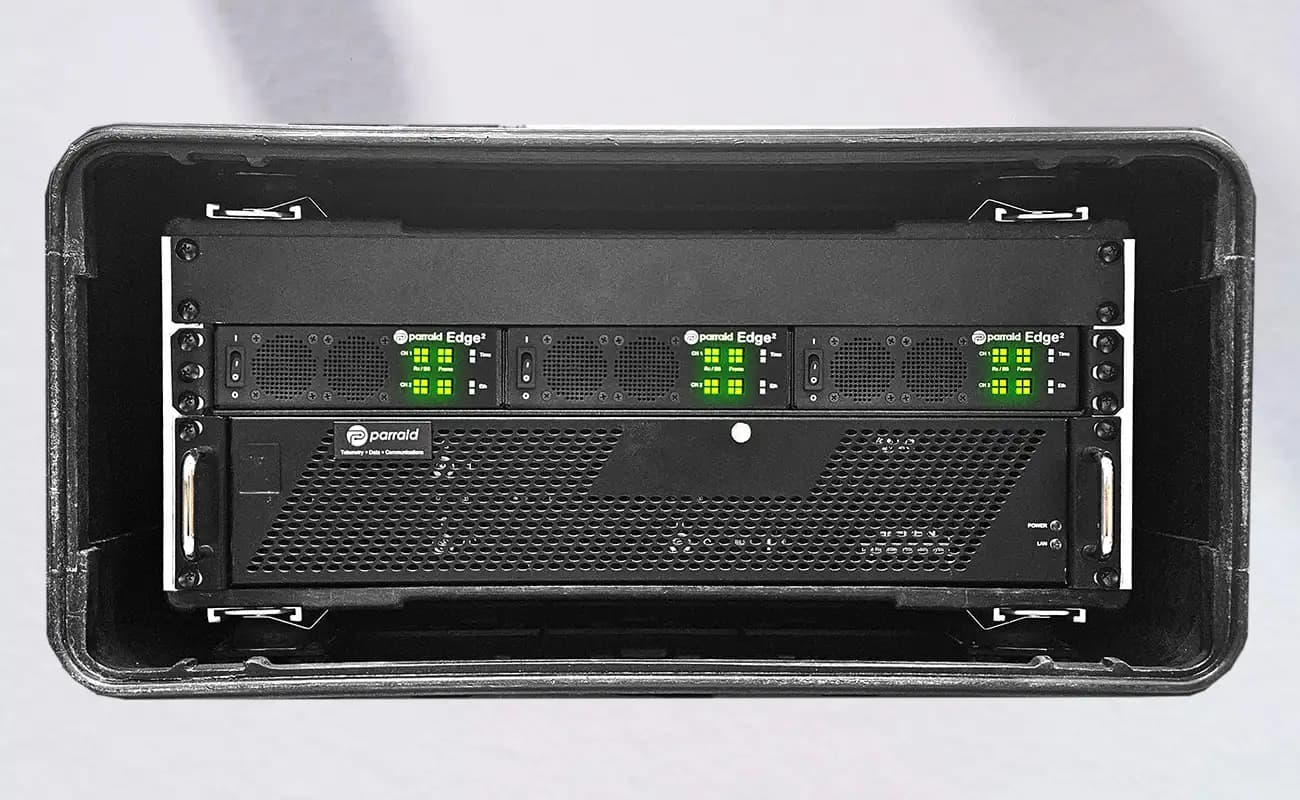

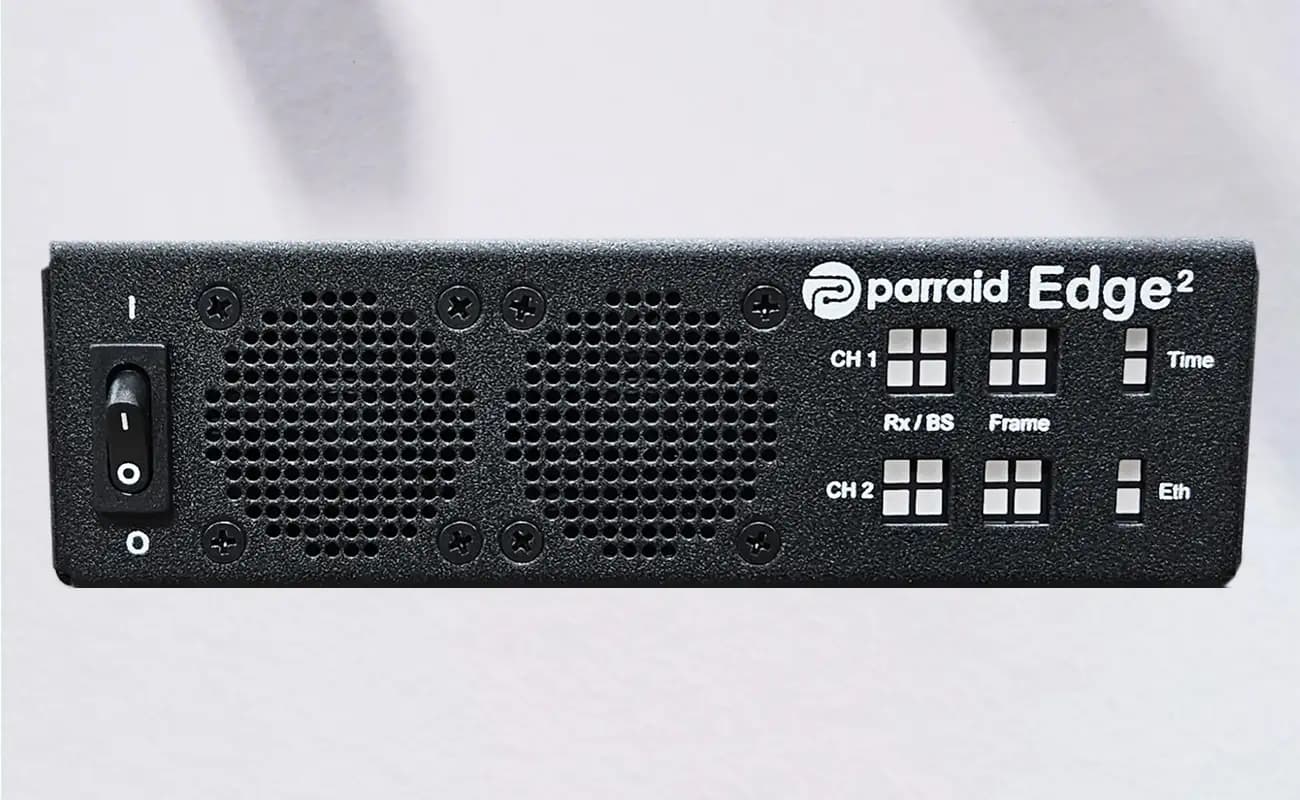

The Edge² is engineered to provide network telemetry processing at the edge in a portable or rack-mountable 2 channel unit. Three Edge² appliances may be rack-mounted side-by-side supporting up to 6 channels of RF, BitSync, or Decom processing in a 1U rack space. Each Edge² unit provides LED status indicators for; Receiver Status, BitSync Status, Frame Sync Status, Time Status, and Ethernet activity.

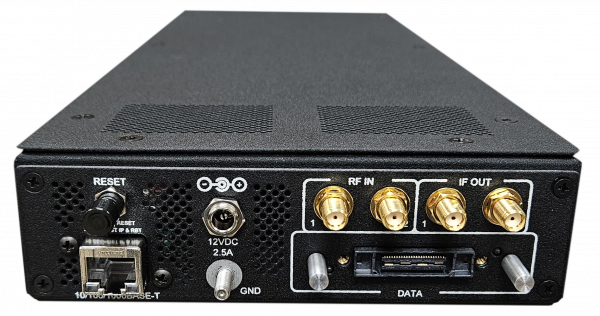

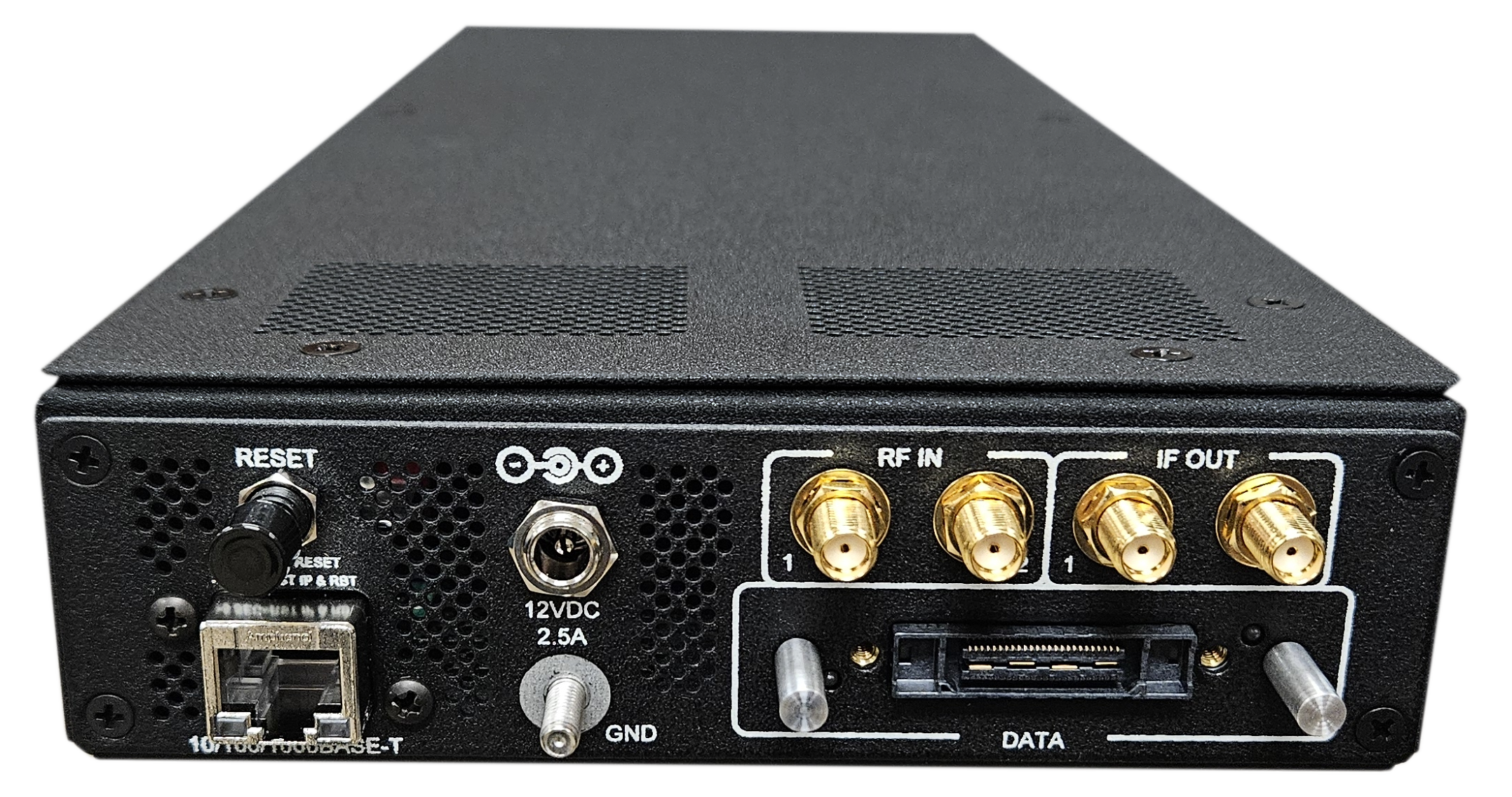

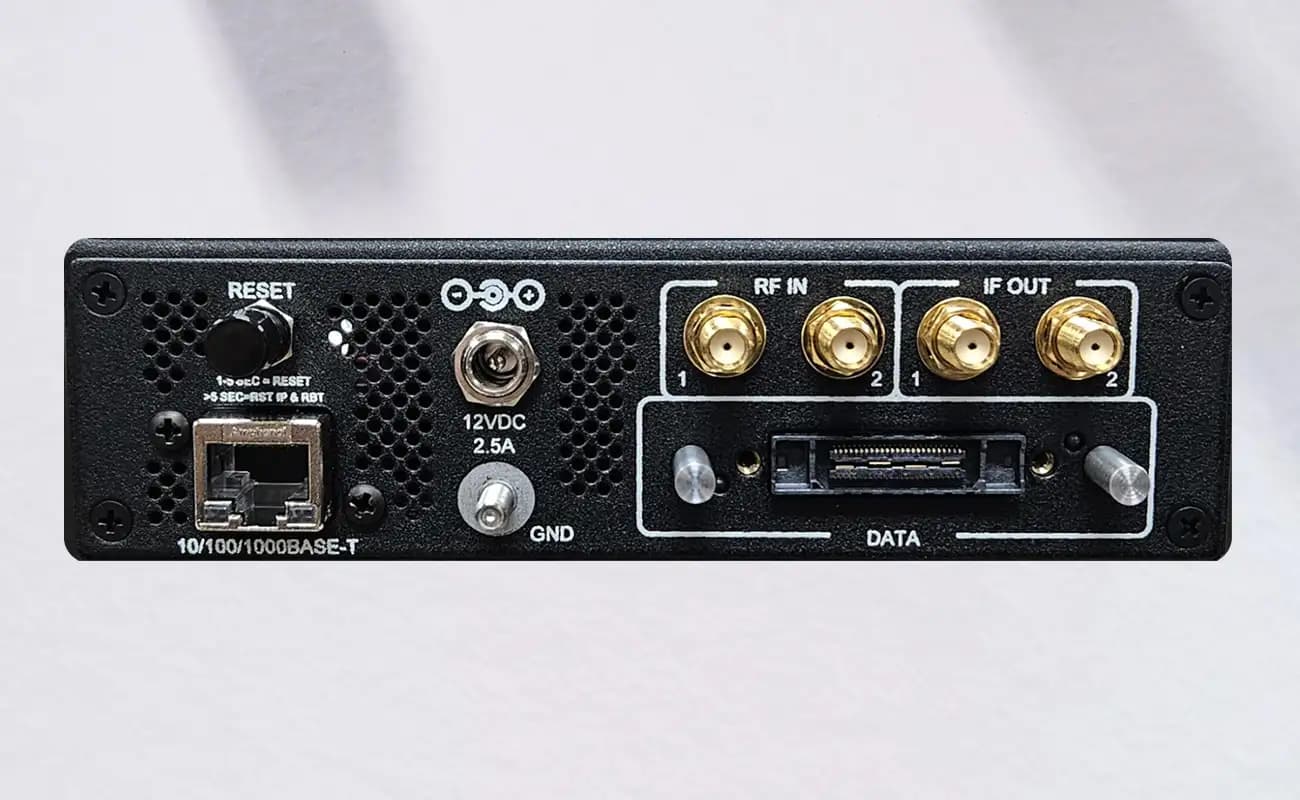

The Edge² unit when configured with receiver modules provides users with complete single or dual stream RF-to-Ethernet telemetry data processing. Capable of supporting all telemetry frequency bands from 200 MHz to beyond 5.15 GHz, these systems provide complete RF input to TMoIP (IRIG 106 Chapter 10/11 or IRIG 218-20) Ethernet output in a single compact 1U rackmount industrial enclosure.

Features:

• TMoIP Output supports IRIG 218-20 or CH10 (selectable per channel).
• Includes an optional Tri-band receiver that supports RF to TMoIP (Chapter 10/11 & IRIG 218-20).
• Offers optional high-performance Bit Synchronizers.
• Provides 1 dB Bit Sync Performance.
• Supports up to 50 Mbps bitrate per channel.
• Capable of 2-channel, 100 Mbps output via a 1 Gbps port.
• Exceeds Class II embedded channel specifications.
• Supports jumbo frames up to 9000 MTU.
• Delivers a typical noise figure of less than 5.0 dB.
• Accepts IRIG A, B, and G, as well as IEEE 1588 PTP time.
• Ingests Chapter 4, Chapter 7, and Chapter 8 formats.
• Features integrated OMEGA NExT real-time data processing, display, data reduction, and data distribution.
• Can support up to 6 channels in a 1U rack space.
